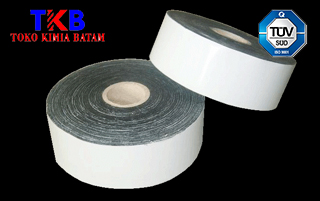

SEALXPERT POLY OUTER WRAP 955

SEALXPERT POLY OUTER WRAP 955

SEALXPERT POLY OUTER WRAP 955

FEATURES

• Worldwide reference lists
• Uniform coating thickness
• Resistant to soil stress
• Impermeable to oxygen and moisture
• Low cathodic protection-current requirements
• Compatible with all pipe diameters and generic plant coatings systems
• Max operating temperature: 85 °C (185 °F)

APPLICATION

• Corrosion protection of steel pipelines
• It achieves a complete bond to the #980 inner layer, providing maximum handling and in-service protection for the coating system
• Can also be used for ductile iron pipes

TECHNICAL DATA

Model	955-20	955-25
Backing colour	White	White
Thickness	0.5 mm	0.63 mm
Backing	15 mils (0.381 mm)	20 mils (0.508 mm)
Adhesive	5 mils (0.127 mm)	5 mils (0.127 mm)
Tensile strength	70 N/cm	70 N/cm
Elongation	450 %	400 %
Peel adhesion to primed steel	33 N/cm	33 N/cm
Cathodic disbondment	0.24 in. radius (6.4 mm)	0.25 in. radius (6.4 mm)
Water vapor transmission rate	0.5 g/m²/24 hr	0.5 g/m²/24 hr
Dielectric breakdown	26 kV/mm	25.6 kV/mm
Dielectric strength	23-26 kV	20-23 kV

SEALXPERT POLYETHYLENE TAPE APPLICATION PROCEDURE

1. Coating the pipe surface with SealXpert Primer.
2. Apply SealXpert Poly Inner Wrap 980. Start at the 9 o’ clock position. Ensure that the adhesive side of tape is to the substrate.
3. Starting a new roll of tape. Overlap ends of tape by one tape width. Overlapping each turn by 55% gives a double thickness.
4. Use SealXpert Poly Outer Wrap as the final wrapping tape
